Dulux Alumi Shield™ Warranty

Dulux Powder Coatings are an ideal choice for the long term protection of architectural aluminium items for your next project, and provide assurance through the issue of Alumi Shield™ Warranties.

The Dulux Alumi Shield™ warranties are available for warranty grade Dulux Powder coat products on architectural grade aluminium. Example items made from architectural aluminium include windows, louvres, doors, balustrades, decorative sheet amongst others.

• Dulux Alumi Shield™ Warranties are your assurance that the coating will not:
  • ¹Fade (colour) – Colour fade testing will give a delta E (Hunter) laboratory reading less than five units from the original colour. In accordance with ASTM D2244.
  • ²Chalk – not exceed a rating of 2 for whites & pastels and a rating of 3 for deep colours as assessed in accordance with AS1580.481.1.11 test method.
• The Alumi Shield™ durability warranty is a film integrity assurance that products will not Peel, crack or flake for the warranty period from the date the Product is applied to the Metal.
• When aluminium items are exposed to interior and exterior environments it is essential that should only one side of a section of metal be coated, or if a section is cut exposing the raw metal, they must be sealed with an appropriate small joint sealant to protect the non-coated area from the environment, i.e. not exposed to moisture, air and excessive heat. Should the seal fail, and a claim is made for an Alumi Shield™ warranty project the warranty for the area affected will be void as the integrity of the seal is not the responsibility of Dulux.
• Warranties are only valid when applied by a Dulux Accredited or Dulux Prime Accredited Powder Coater to the warranty specification on recommended projects, and subject to specified warranty terms and conditions. This includes implementing a maintenance schedule inline with the Dulux recommended Care and Maintenance guidelines. For more information visit the Tech Advice page here

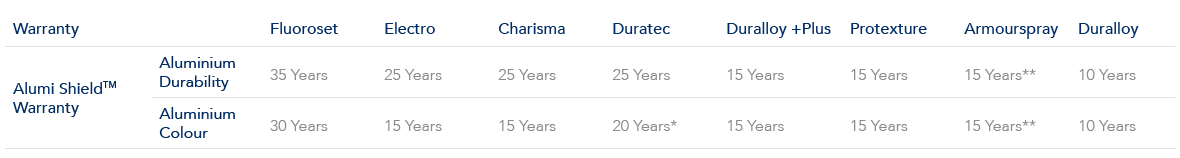

All Dulux premium powder coat products are backed by product specific Alumi Shield^TM warranties. Below is an overview of the warranty periods by product available from Dulux:

*Excluding Intensity – 15 Years
**The Alumi Shield Colour Warranty is not applicable to Armourspray clear products. The Alumi Shield Durability Warranty only applies to Armourspray clear products when applied over Dulux Protexture, Duralloy +Plus, Duratec, Electro & Charisma powder coatings.

It is important to define your project correctly to ensure the correct product is specified and the performance and warranty is able to be gained for your project.

Both project type and the environment (conditions) will impact on the exposure of the powdercoat to elements such as UV, dirt and salt. For instance, marine and coastal environments are exposed to winds and sea salts, which have a long-term impact on the performance of coating systems due to erosion and weathering, and commercial projects will be exposed to greater environmental impacts, whether they be the usage of the environment or the height of the building.

To ensure products are fit for these environments Dulux recommends suitable products based on the AS3715 and AAMA testing standards. These standards provide a benchmark of product quality that are an assurance that your asset will be protected by a product fit for purpose. For complete details relating to these standards visit aamanet.org

To define projects we utilise three key sources:

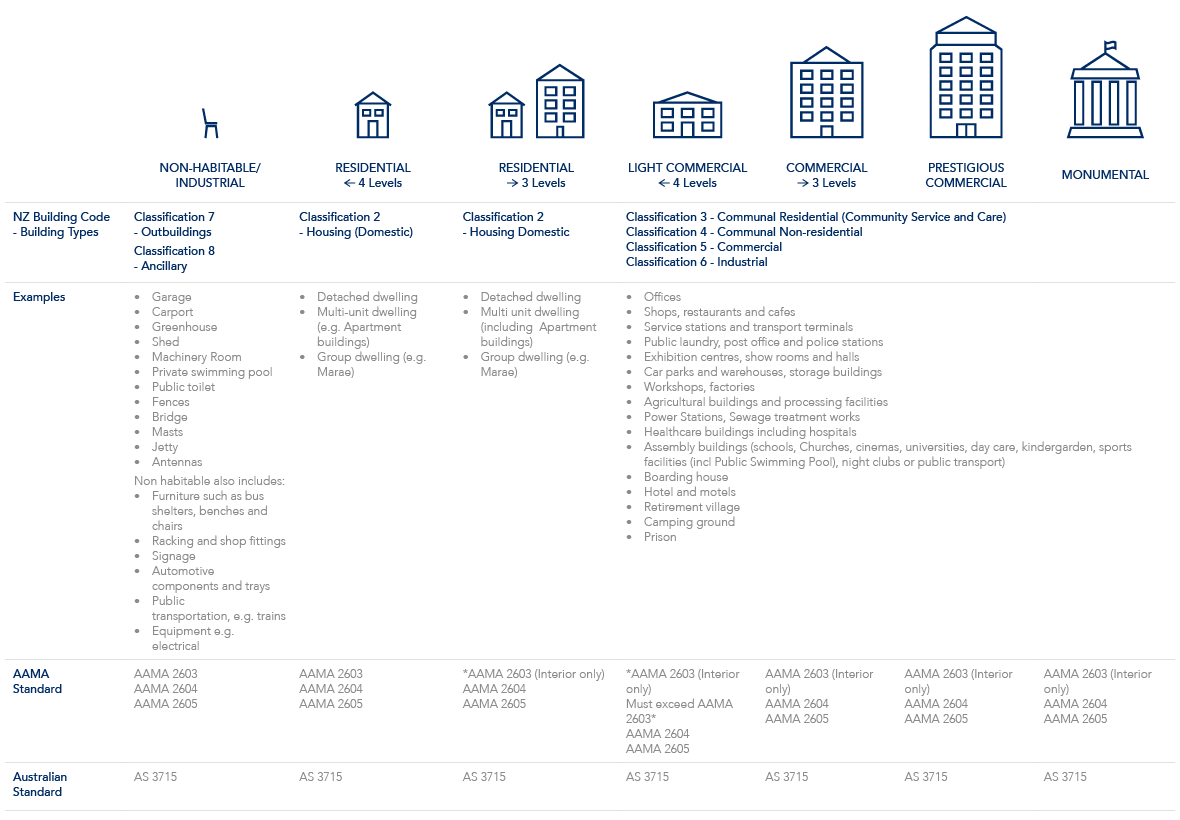

1. The building classifications under the Building code of Australia (Building Classifications from the New Zealand Building Code)
2. Industry standards for powder coatings – Primarily AAMA and AS3715

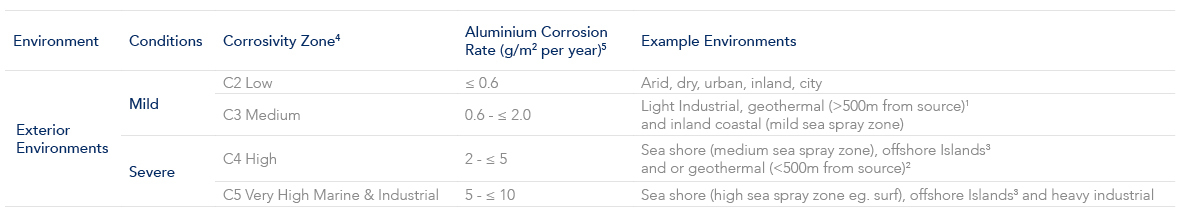

3. Environmental condition utilising AS4312 and ISO12944 Atmospheric corrosivity zones in Australia as a guide

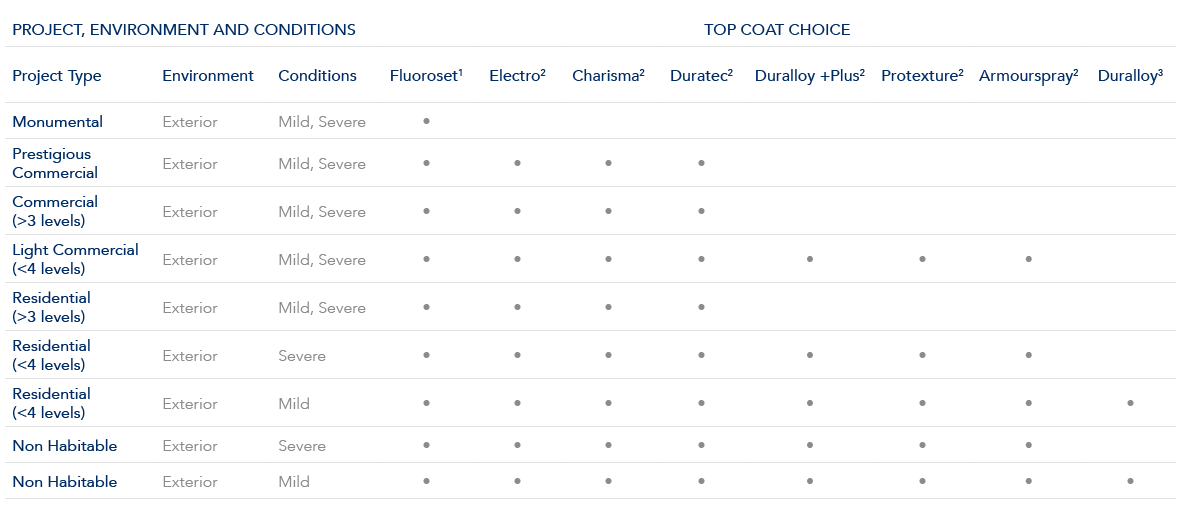

The following tables allow you to identify your project, to look at the appropriate products for the environment, whether it be interior or exterior, the care and maintenance required, and details on our Dulux Accredited and Dulux Accredited Prime Powder Coaters, as only Dulux Accredited Powder coaters are able to issue our Dulux Alumi Shield warranties.

Dulux Alumi Shield™ warranties are available on a wide range of fabricated architectural aluminium items, but those items must be designed, prepared (pre-treated), coated, fabricated and installed to standard ensuring that the item is fully protected.

It is essential that any item that is coated must be designed and fabricated to ensure:

• It meets key standards – Refer to AS 2312.1 and the relevant building code.
• Protection is a key consideration at the early stages of design – The design should allow the item to be prepared for coating correctly and that the minimum thickness of the specified coating can be achieved.
• Exposed areas are appropriately sealed to last the duration of the warranty – It is essential that the choice of other materials that contribute to protection such as sealants should be made to ensure that an Alumi Shield™ warranty is not void due to the sealants failure. This is important if only one side of a section of metal is to be coated, or if a section is cut exposing the raw metal, as it must be in a sealed environment to protect the non-coated area from the environment i.e. not exposed to moisture, air and excessive heat. Should the seal fail, and a claim is made for an Alumi Shield™ warranty project the warranty for the area affected will be void as the integrity of the seal is not the responsibility of Dulux.
• The following design elements are avoided – Narrow crevices, poor air circulation, depressions, sharp edges and corners, large flat ledges (not window ledges), intermittent welding, undrained flat surfaces, unsealed hollow sections, flat surfaces in loose contact where moisture may be drawn in between them by capillary action or where water and foreign matter will lodge, as these areas may result in premature failure of the coating system.
• Failure caused by post formed or post fabrication processes are avoided – Please be aware warranties shall not apply to areas where a failure is caused from post formed or post fabrication processes, such as metal perforation, welding, cutting or any other circumstances beyond the reasonable control of Dulux. Many post fabrication processes can impede achievement of a continuous layer of pre-treatment and the minimum film build of powder coating. Where there is doubt please consult the relevant guideline or regulation such as the building code or window association for information on mitigating any potential damage that could be caused by post fabrication processes.
